Special Cargo

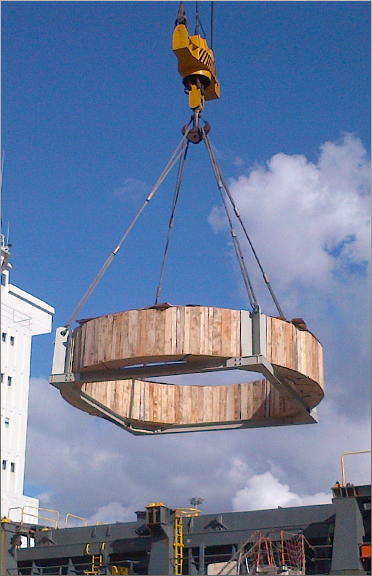

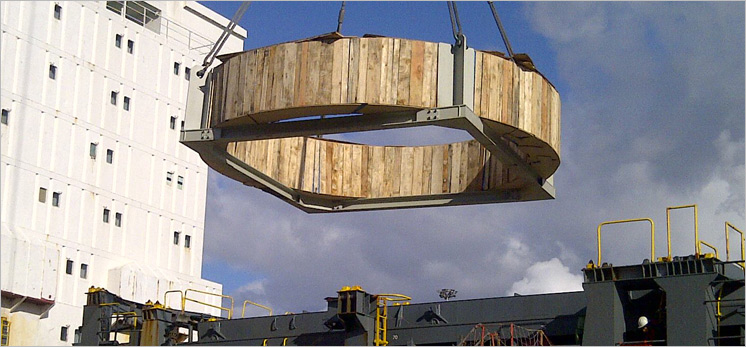

Special and Project Cargo

Specialization is our strength.


The history and tradition we have behind us has allowed us to acquire greater and greater ability and experience in developing avant-garde solutions for moving and stowing special cargos. Thanks to several important investments in highly specialized equipment such open top, platforms, and mafi trailers, today Ignazio Messina & C. is able to offer regular scheduled services for project cargos even if they have outstanding size and weight.

This attitude has been recently reinforced with the purchase of the eight new ship units provided with a stern loading ramp, which has been designed to allow the transport of special cargos and of plant engineering materials. The ramp can carry a maximum weight of 350 tons and has a 12.5 m of useful passage; the stern door is 27 m wide and 7 m high.

The new fleet allows us to offer a wide range of cargo solutions to our clients. Additionally, we are currently developing a further plan for ship equipment in order to implement our services and transport solutions.

Because of these reasons, our Company proves to be an efficient and strong alternative to bulk shipping.

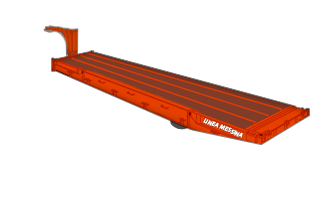

Roll Trailer Specs

EXTERNAL

20': L 6170 - W 2500 - H 650
40': L 12350 - W 2500 - H 750
50': L 15240 - W 2500 - H 820
60': L 18290 - W 2500 - H 650
62': L 18900 - W 2500 - H 650

CAPACITY

Weight 20': 40 tons
Weight 40': 35/100 tons
Weight 50': 80 tons
Weight 60': 80 tons
Weight 62': 100 tons

TARE WEIGHT
20': 4,1 tons - 40': 5/8 tons - 50': 10,1 tons - 60': 12,1 tons - 62': 12 tons

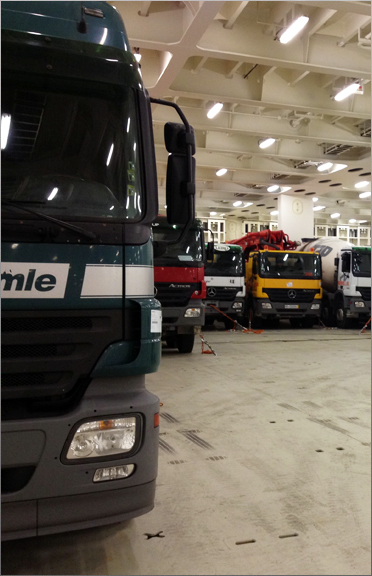

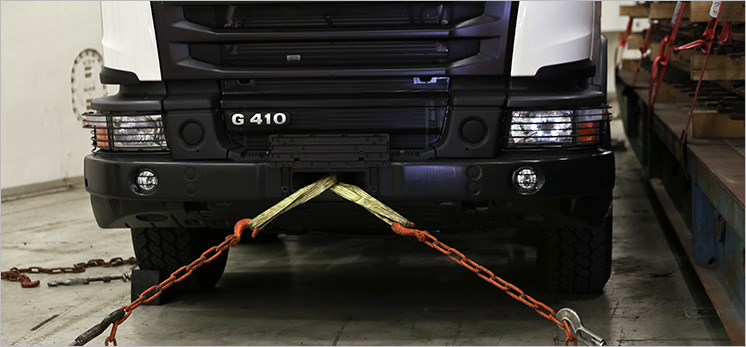

Ro/Ro

Our operational Flexibility

1968 represented a turning point: the fleet was improved and the traditional merchant vessels were gradually replaced at the beginning with ro/ro ships and then with ro/ro containerships.


The eight new ships were put into service between 2011 and 2015 and they have considerably increased our loading capacity. Thanks to our fleet, to the efficient and safe transport system, and to our staff, that is highly trained to obtain the best stowage and transport arrangements, we offer a regular line service for rolling cargos of different shapes and weights.

All of this allows us to include among our most loyal customers some of the major manufacturers of vehicles, ranging from common automobiles to pick-up and to bigger facilities used in constructions (concrete mixer, cranes, etc...), as well as any other kind of highly specialized machineries.

Our mission is to give our customers an exclusive service: economically convenient and eco-friendly.

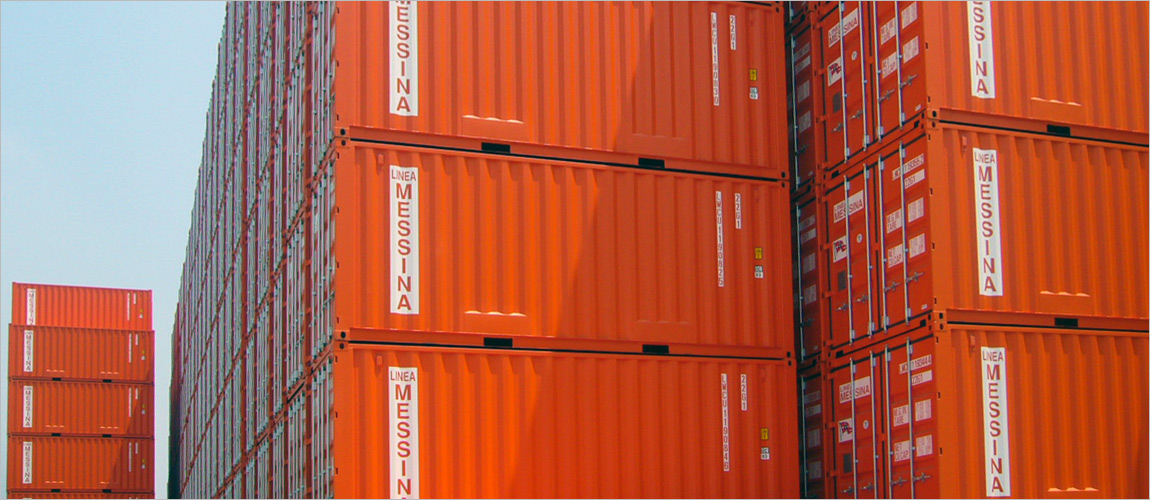

Containers

LMCU, a brand which means diversified and flexible solutions

From 1970s, Ignazio Messina & C has gradually changed its business, becoming nowadays highly specialized in container cargo shipping.


Today our container fleet is made up of over than 48,000 units that encompass different kinds of models (box, high cube, open top, platform, and flat-rack), for a total amount of about 70,000 TEU. Most of them are owned, and the rest are leased from third parties.

Thanks to the wide range of equipment, we can satisfy all of our clients' requests about cargo loading: from items that can be stowed in containers to the most particular shipments which need specialized facilities.

All of our containers are CSC (Convention for Safe Containers) certified and are subject to ACEP (Approved Continuous Examination Program) certification according to the rules of classification registers for an appropriate maintenance of equipment.



Containers Specs

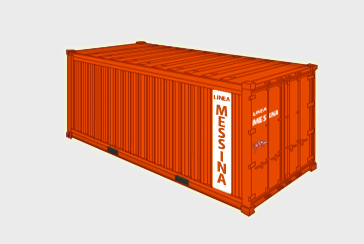

20' Box



CONTAINER RANGE NUMBER

From - To:
LMCU 020001 - LMCU 029723
LMCU 030325 - LMCU 039999
LMCU 100001 - LMCU 125561

CONTAINER TYPES

ISO Type: 20BX
ISO Code: 22G1

EXTERNAL
Length: 6058 - Width: 2438 - Height: 2591

INTERNAL
Length: 5910 - Width: 2344 - Height: 2385



DOOR
Width: 2336 - Height: 2200/2285

CAPACITY
Weight: 30480

TARE WEIGHT
Min: 2100 - Max: 2900

40' Box



CONTAINER RANGE NUMBER

From - To:
LMCU 040000 - LMCU 049280
LMCU 400000 - LMCU 400825

CONTAINER TYPES

ISO Type: 40BX
ISO Code: 42G1

EXTERNAL
Length: 12192 - Width: 2438 - Height: 2591

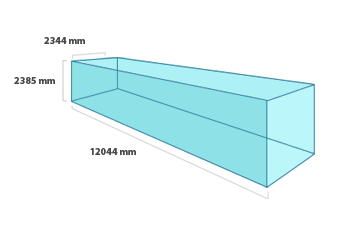

INTERNAL
Length: 12044 - Width: 2344 - Height: 2385



DOOR
Width: 2336 - Height: 2270/2285

CAPACITY
Weight: 30480

TARE WEIGHT
Min: 3720 - Max: 4000

40' Box High Cube



CONTAINER RANGE NUMBER

From - To:
LMCU 910000 - LMCU 914012
LMCU 915001 - LMCU 917000 (*)

CONTAINER TYPES

ISO Type: 40HC
ISO Code: 45G1

EXTERNAL
Length: 12192 - Width: 2438 - Height: 2896

INTERNAL
Length: 12031 - Width: 2350 - Height: 2700



DOOR
Width: 2340 - Height: 2585

CAPACITY
Weight: 30480
Weight: 34000 (*)

TARE WEIGHT
Min: 3990 - Max: 4030
Min: 4100 - Max: 4270 (*)

20' Box Ventilated



CONTAINER RANGE NUMBER

From - To:
LMCU 029724 - LMCU 030324
LMCU 900001 - LMCU 900800

CONTAINER TYPES

ISO Type: 20VE
ISO Code: 22V1

EXTERNAL
Length: 6058 - Width: 2438 - Height: 2591

INTERNAL
Length: 5910 - Width: 2344 - Height: 2385



DOOR
Width: 2336 - Height: 2200/2285

CAPACITY
Weight: 30480

TARE WEIGHT
Min: 2100 - Max: 2600

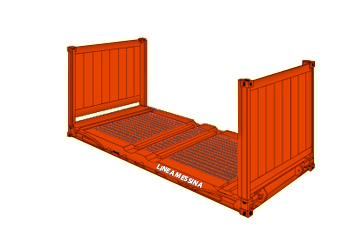

20' Flatrack



CONTAINER RANGE NUMBER

From - To:
LMCU 060101 - LMCU 060453

CONTAINER TYPES

ISO Type: 20FR
ISO Code: 22G1

EXTERNAL
Length: 6058 - Width: 2438



CAPACITY
Weight: 30480

TARE WEIGHT
Min: 1500 - Max: 2750

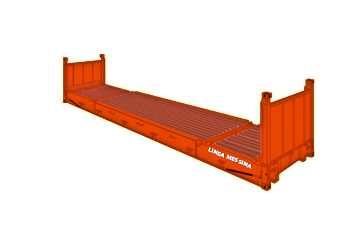

40' Flatrack



CONTAINER RANGE NUMBER

From - To:
LMCU 070346 - LMCU 070360
LMCU 070501 - LMCU 070585
LMCU 070648 - LMCU 070648
LMCU 070650 - LMCU 070705
LMCU 070730 - LMCU 070794
LMCU 071259 - LMCU 071259
LMCU 071320 - LMCU 071320

CONTAINER TYPES

ISO Type: 40FR
ISO Code: 40P3

EXTERNAL
Length: 12192 - Width: 2438

CAPACITY
Weight: 30480

TARE WEIGHT
Min: 3900 - Max: 6080

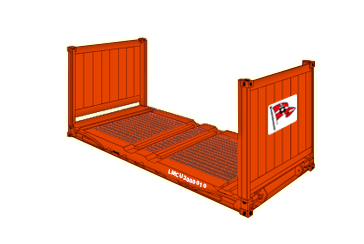

20' Flatrack High Cube



CONTAINER RANGE NUMBER

From - To:
LMCU 200001 - LMCU 200100

CONTAINER TYPES

ISO Type: 20FR
ISO Code: 25P3

EXTERNAL
6058 x 2438 x 2896 mm (h collapsed 432 mm)

CAPACITY
Weight: 47400

TARE WEIGHT
3000 Kg

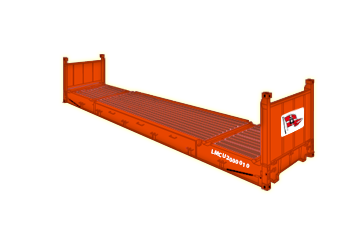

40' Flatrack High Cube



CONTAINER RANGE NUMBER

From - To:
LMCU 500001 - LMCU 501000

CONTAINER TYPES

ISO Type: 40FR
ISO Code: 45P3

EXTERNAL
12192 x 2438 x 2896 mm (h collapsed 648 mm)

CAPACITY
Weight: 47400

TARE WEIGHT
5100 Kg

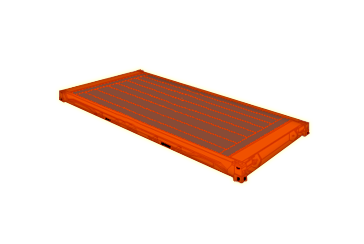

20' Platform



CONTAINER RANGE NUMBER

From - To:
LMCU 008001 - LMCU 009000
LMCU 016001 - LMCU 016100
LMCU 018001 - LMCU 019847

CONTAINER TYPES

ISO Type: 20PL
ISO Code: 22P0

EXTERNAL
Length: 6058 - Width: 2438 - Height: 2591



DOOR
Width: 2336 - Height: 2200/2285

CAPACITY
Weight: 30480

TARE WEIGHT
Min: 1500 - Max: 2750

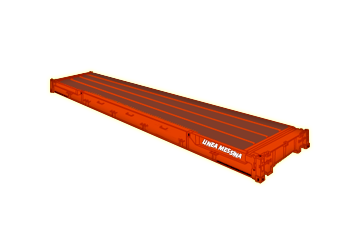

40' Platform



CONTAINER RANGE NUMBER

From - To:
LMCU 070001 - LMCU 070345
LMCU 070361 - LMCU 070500
LMCU 070586 - LMCU 070586
LMCU 070649 - LMCU 070649
LMCU 070708 - LMCU 070716
LMCU 071001 - LMCU 071252
LMCU 071254 - LMCU 071258
LMCU 071260 - LMCU 071313
LMCU 071330 - LMCU 071383

CONTAINER TYPES

ISO Type: 40PL
ISO Code: 42P0

EXTERNAL
Length: 12192 - Width: 2438

DOOR
Width: 2336 - Height: 2200/2285

CAPACITY
Weight: 30480

TARE WEIGHT
Min: 3900 - Max: 6080

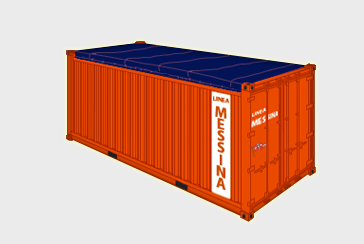

20' Box Opentop



CONTAINER RANGE NUMBER

From - To:
LMCU 050001 - LMCU 056100

CONTAINER TYPES

ISO Type: 20OT
ISO Code: 22U1

EXTERNAL
Length: 6058 - Width: 2438 - Height: 2591

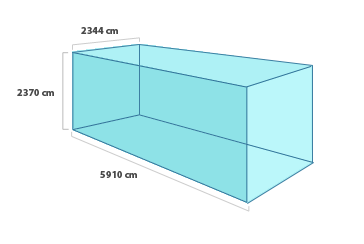

INTERNAL
Length: 5910 - Width: 2344 - Height: 2370



DOOR
Width: 2330 - Height: 2280

CAPACITY
Weight: 30480

TARE WEIGHT
Min: 2100 - Max: 2600

40' Box Opentop



CONTAINER RANGE NUMBER

From - To:
LMCU 080391 - LMCU 083105

CONTAINER TYPES

ISO Type: 40OT
ISO Code: 42U1

EXTERNAL
Length: 12192 - Width: 2438 - Height: 2591

INTERNAL
Length: 12044 - Width: 2344 - Height: 2370



DOOR
Width: 2330 - Height: 2280

CAPACITY
Weight: 30480

TARE WEIGHT
Min: 3750 - Max: 4000

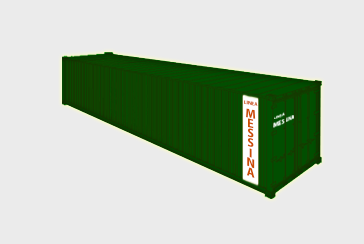

40' Box Pallet Wide



CONTAINER RANGE NUMBER

From - To:
LMCU 460001 - LMCU 460033
LMCU 700000 - LMCU 700270

CONTAINER TYPES

ISO Type: 40CP
ISO Code: 4CG1

EXTERNAL
Length: 12192 - Width: 2462 - Height: 2591

INTERNAL
Length: 12095 - Width: 2422 - Height: 2387



DOOR
Width: 2400 - Height: 2279

CAPACITY
Weight: 30480

TARE WEIGHT
Min: 4040 - Max: 4650
